Cisco TelePresence Management Suite

tms

The Cisco TelePresence Management Suite is scalable, easy-to-use and integrates with existing applications to increase ROI. It provides complete visibility and centralized control for on-site and remote video systems. TMS supports management, deployment, and scheduling of the entire video network, including telepresence, from one single product.

DESCRIPTION

One management platform for all your video communication needs. TANDBERG Management Suite (TMS) is scalable, easy-to-use and integrates with existing applications to increase ROI. It provides complete visibility and centralized control for on-site and remote video systems. TMS supports management, deployment, and scheduling of the entire video network, including telepresence, from one single product.

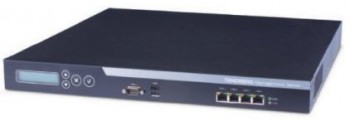

TelePresence Management Suite is available as a software package for large-scale deployment or as a Management Server, an optional TMS bundle offering quick and easy deployment for small to mid-size installations.

FEATURES

Video Conferencing Management

  • Complete management of on-site and remote video systems, including statistics, directories, booking and software updates
  • Intuitive Web-based interface
  • Manages network and video equipment from multiple vendors
  • Manages calls made on multiple protocols (IP using H.323 and SIP, ISDN, V.35 and mixed calls)
  • Manages endpoints, MCUs, network infrastructure, and gateways directly
  • Supports automatic creation of phone books, including Active Directory and H.350
  • Implements and manages automated software upgrades for video devices
  • Easy mass configuration of systems

Video Conferencing Monitoring, Diagnostics and Reporting

  • Detailed system and conference records
  • Intelligent diagnostics enabling rapid response
  • System summary page for fast access to most-used information
  • Consolidated list of open tickets with links to recommended fixes
  • Integrated Network Monitoring Support — Integrates with HP OpenView, IBM Tivoli®, NetCool® and any SNMP network monitoring tool
  • Event notification prevents and minimizes negative service level
  • Track all system usage and identify trends — packet loss, bandwidth usage, system auditing
  • Call Detail Records and Statistics (CDRs)

Scheduling

  • Scheduling or ad-hoc calling for video, audio, Web and data conferences
  • Schedule conferences, book rooms and invite participants using Microsoft Outlook,® or IBM Lotus Notes®*

TMS Supports the Personalization of Video

  • Easy provisioning and deployment of personal video devices.
  • Effective management of highly scalable networks of personal video devices
  • Seamlessly and efficiently facilitates future video network growth and additions

Techsheets

PROCESSOR & MEMORY
Intel® Pentium® 4 LGA775 CPU (Max. Intel® Pentium®
4 LGA775 CPU (Max. 3.6GHz with 800MHz FSB and 1MB Cache)
240-pin DIMM x 2, suppor t Max. 2GB DRRII 400/533 memory

BIOS
Award System BIOS
Support Console redirection
Support Power on after power fail as the BIOS option
By-pass enable/disable as the BIOS option

PCI EXPANSION
On-board 32bit/33MHz Mini PCI Socket x1 (Master)

STORAGE
IDE 3.5”HDD x 1 (Stand Type) or IDE 3.5”HDD x 2 (Slim Type)
SATA 3.5”HDD x1 (Stand Type) or SATA 3.5”HDD x2 (Slim Type)
On-board Compact Flash Socket (Primary Channel)

COOLING SYSTEM
On-board 40 x 40 mm fan x 2
System 40 x 40 mm fan x 2 at Rear

ETHERNET
Marvell 8053 x 4 (PCI Express x 1): Copper
(Base T, RJ45 with LED) GbE port x 4 (1, 2, 3, 4)
LAN 1 & 2 support by-pass function
SYSTEM CONTROL AND INDICATOR
Power LED x 1 at Front
HDD Active LED x 1 at Front
AT Power Switch x 1 at Rear

SYSTEM I/O INTERFACE
COM por t x 2 (Front x 1, Rear x 1)
USB 2.0 por t x 4 (Front x 2, Rear x 2)
GPIO : 4 in 4 out
Optional 16 x 2 characters LCD Module with keypads through PIO Inter face

ENVIRONMENTAL DATA
Operating temperature:
0ºC to 40ºC (32ºF to 104ºF)
Relative humidity: 10% to 90%
Storage and space in transport temperature:
-20ºC to 80ºC (-4ºF to 140ºF) non-condensing

POWER
100-240 VAC, 50-60 Hz, 250W max

PHYSICAL DIMENSIONS
Height: 1.7" (44mm)
Width: 16.8" (426mm)
Depth: 16.4" (419mm)
19" rack-mountable,
1U height
