Cisco Telepresence Profile 55″


Cisco have now made the Cisco TelePresence System Profile 55″ systems end of life. We recommend you take a look at the Cisco MX Series all-in-one room systems. For questions about the Profile system, to discuss 2nd hand options, or are interested in how this may effect your maintenance contract, please contact the team at VideoCentric.

The Cisco Telepresence System Profile 55-inch Single and Dual is the next-generation team-collaboration video solution with 1080p high-definition (HD) resolution. It brings colleagues face-to-face at the touch of a finger through a user-friendly touch interface. The Cisco Telepresence Profile 55 Single Screen integrates the codec C40. The Profile 55 Dual Screen integrates with the codec C60. The Single Screen Profile with C60 codec is now end-of-life.

  • 55″ 1080p widescreen LCD (2x for dual)
  • C40 and C60 codec options
  • Cisco TelePresence Precision HD Camera
  • 4 way embedded HD multiSite
  • 3 base options – floor, wheel or wall mount
  • H.323 & SIP

DESCRIPTION

Cisco TelePresence Profile 55″ – Empowering you to Collaborate

The Cisco Telepresence System Profile 55-inch Single and Dual is the next-generation team-collaboration video solution with 1080p high-definition (HD) resolution. It brings colleagues face-to-face at the touch of a finger through a user-friendly touch interface. With these systems you can easily share presentations and multimedia to inspire ideas and generate better discussions. The Cisco Telepresence System Profile 55-inch Single comes in one performance configuration, the codec C40, and the Cisco Telepresence System Profile 55-inch Dual has one performance configuration, the codec C60.

cisco-telepresence-profile-55-dual

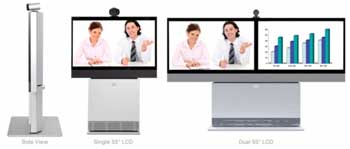

Above: Cisco TelePresence Profile 55″ Dual Screen

Design Features

  • Exclusive Scandinavian design with a clean, sleek look from all angles
  • Easy to install with everything included for a full functional system and easy to configure with full support for provisioning
  • Fully integrated system with 1080p widescreen LCD, and Cisco TelePresence Precision HD Camera (1080p)
  • Ideal camera and display height for natural communication
  • Use of Energy Star compliant displays for reduced power consumption and recyclable aluminum materials to support our commitment to the environment
  • Ease of use with the Cisco Telepresence touch screen user interface
  • Fully tested and compliant solution from one vendor

Application Features

  • 4-way 720p30 (C60) or w576p30 (C40) HD embedded Cisco TelePresence MultiSite (MultiSite) with Individual
  • Transcoding providing optimized multipoint experience for all sites
  • Clear, smooth HD collaboration with WUXGA (C60) or WXGA (C40), full 1080p HD video and up to 60fps framerate for superior motion handling
  • Standard-compliant – compatible with standard-based video without losing features
  • One Button to Push (OBTP) to start scheduled meetings
  • Ideal for team-based collaboration and industry applications

Performance Features

  • Choice of network up to 6 Mbps point-to-point (H.323/SIP)/up to 10 Mbps MultiSite (H.323/SIP)
  • Optimal definition – resolutions up to full 1080p and support 60 fps up to 720p
  • 5x (C60) or 4x (C40) Video Inputs/Outputs
  • 4x (C60) or 2x (C40) XLR audio input with individual echo canceller
  • Full duplex audio with high-quality stereo sound
  • Ability to take advantage of Cisco Total Solution Management, transcoded HD multipoint control unit (MCU), recording and streaming, Multiway and firewall traversal
  • Cisco Unified Communication Manager (CUCM) native registration (requires CUCM version 8.6 or higher)

Cisco Telepresence Portfolio

The Cisco TelePresence™ portfolio creates an immersive, face-to-face experience over the network – empowering you to collaborate with others like never before. Through a powerful combination of technologies and design that allows you and remote participants to feel as if you are all in the same room, the Cisco TelePresence portfolio has the potential to provide great productivity benefits and transform your business. Many organizations are already using it to control costs, make decisions faster, improve customer intimacy, scale scarce resources, and speed products to market.

OPTIONS

Cisco TelePresence Profile 55″ Single C40

Single 55″LCD  display with 720p C40 Codec (1080p upgrade licence available) Includes:

  • 12 x zoom motorised PrecisionHD Camera
  • LCD touch input device
  • 2 Table Top microphones
  • NPP presentation feature included as standard
  • Available with Floor stand, Wheel base or Wall Mount
  • See C40 Codec >>

Licences available: 1080p, Dual Display, Multisite

Cisco TelePresence Profile 55″ Single C60 (now End Of Life – See EOL Announcements for more information)

Single 55″ LCD display with 720p C60 Codec (1080p upgrade licence available) Includes:

  • 12 x zoom motorised PrecisionHD Camera
  • LCD touch input device
  • 3 Table Top microphones
  • NPP presentation feature included as standard
  • Available with Floor stand, Wheel base or Wall Mount
  • See C60 Codec >>

Licences available: 1080p, Multisite

Cisco TelePresence Profile 55″ Dual C60

Dual 55″ LCD display with 720p C60 Codec (1080p upgrade licence available) Includes:

  • 12 x zoom motorised PrecisionHD Camera
  • LCD touch input device
  • 4 Table Top microphones
  • NPP presentation feature included as standard
  • Available with Floor stand, Wheel base or Wall Mount
  • See C60 Codec >>

Licences available: 1080p, Multisite

Licences

1080p Resolution – Upgrade Resolution of C40 and C60 codecs from 720p to 1080p

Dual Display – Enables 2nd monitor. Not to be confuse with Dual Screen system. Dual Display licence available for Single screen systems for additional monitor (none Cisco) or projector to be added.

Multisite – Multisite hosting option with 720p HD 4 way continuous presence layout capability

DOCS/DOWNLOADS

Techsheets

Unit Delivered Complete With:
Full HD LCD display(s), Cisco TelePresence Codec C60/C40, Cisco Telepresence touch screen UI, remote
control, Cisco TelePresence Precision HD Camera (1080p), Table microphones (2x/3x with single screen; 4x with
dual screen), Digital Audio Module, integrated speakers and integrated cabling and cable management

Monitor

Available with:
55-inch Full HD LCD, 16:9 and 1080 x 1920 resolution
Dual monitor configuration includes 2x 55-inch Full HD LCD monitors

Base

Available with:
Floor standing footplate
Wheel base (only available on 55-inch single)
Wall mount on pedestal

Bandwidth

H.323/SIP up to 6 Mbps point-to-point
H.323/SIP up to 10 Mbps MultiSite

Firewall Traversal

Cisco Telepresence Expressway technology
H.460.18 and H.460.19 Firewall Traversal

Video Standards

H.261, H.263, H.263+, H.264

Video Features

Native 16:9 Widescreen
Advanced Screen Layouts
Intelligent Video Management
Local Auto Layout

Audio Standards

G.711, G.722, G.722.1, 64 bit and 128 bit MPEG4
AAC-LD and AAC-LD Stereo

Audio Features

CD-quality 20KHz mono and stereo
Four (C60) or Two (C40) separate acoustic echo cancellers
4-port (C60) 2-port(C40) audio mixer
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization
ALD (Assistive Listening Devices) support with acoustic echo cancellation (only C60)

Audio Inputs (Seven Inputs C60) (Five Inputs C40)

Four (C60) or Two (C40) microphone, 48V phantom powered, XLR connector each with separate echo cancellers
and noise reduction; all microphones can be set for balanced line level
Two RCA/Phono, Line Level: Stereo PC input, configurable to 2 x RCA/Phono, Line Level: Mono auxiliary/DVD
input
One HDMI, digital: Stereo PC/DVD input

Audio Outputs (3 Outputs)

Two RCA/Phono, line level, stereo main audio, configurable to S/PDIF or two RCA/Phono outputs, line level, mono
to recording device
One HDMI, digital, stereo main audio

Dual Stream

H.239 (H.323) dual stream
BFCP (SIP) dual stream
Support for resolutions up to 1080p30/WUXGA, independent of main stream resolution (C60)
Support for resolution up to WXGA, independent of main stream resolution (C40)

Multipoint Support

Four-way embedded SIP/H.323 Multipoint (see reference Multisite Features)
Cisco Telepresence Multiway support (requires Cisco Telepresence Video Communication Server (Cisco VCS)
and Cisco Telepresence MCU)
Ability to natively join multipoint conferences hosted on Cisco Telepresence Multipoint Switch (CTMS)

Multisite Features (Embedded Multipoint Switch)

Four-way 720p30 (C60)/w576p30 (C40) High Definition SIP/H.323 MultiSite
Full individual audio and video transcoding
Individual layouts in MultiSite continuous presence (takes out Self View)
H.323,SIP and Voice over IP (VoIP) in the same conference
Best Impression (Automatic continuous presence layouts)
H.264, encryption and dual stream from any site
IP Down speeding
Dial-in and dial-out
Additional telephone call (no license required)
Conference rates up to 10 Mbps

Protocols

H.323
SIP

Embedded Encryption

H.323/SIP point-to-point
Standards-based: H.235v3 and Advanced Encryption Standard (AES)
Automatic key generation and exchange
Supported in Dual Stream
IP Network Features

DNS lookup for service configuration
Differentiated Services (QoS)
IP adaptive bandwidth management (including flow control)
Auto gatekeeper discovery
Dynamic playout and lip-sync buffering
H.245 DTMF tones in H.323
Date and Time support through Network Time Protocol (NTP)
Packet loss-based downspeeding
URI dialing
TCP/IP
Dynamic Host Configuration Protocol (DHCP)
Direct DNS dialing
802.1x Network authentication
ClearPath

Cisco Unified Communications Manager (CUCM)
(Requires CUCM Version 8.6 or Higher)

Native registration with Cisco Unified Communications Manager (CUCM)
Basic CUCM provisioning
Firmware upgrade from CUCM
Cisco Discovery Protocol (CDP) and DHCP option 150 support
Basic telephony features such as hold, resume, transfer and Corporate Directory lookup

IPv6 Network Support

Single call stack support for both H323 and SIP
Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
Support for both Static and Autoconfiguration (stateless address auto configuration)

Security Features

Management through HTTPS and SSH
IP Administration password
Menu Administration password
Disable IP services
Network settings protection

Network Interfaces

Two LAN/Ethernet (RJ-45) 10/100/1000 Mbit

Other Interfaces

USB host for future usage (only Codec C60)
USB device for future usage
GPIO* (only Codec C60)

Cisco TelePresence Precision HD Camera (1080P)

1/3 inch CMOS
12 x zoom
+15°/-25° tilt, +/- 90° pan
43.5° vertical field of view
72° horizontal field of view
Focus distance 0.3m-infinity
1920 x 1080 pixels progressive @ 60fps
Other formats supported (configurable through Dip-switch):

1920x1080@60fps (HDMI only)
1920x1080@50fps (HDMI only)

1920x1080@30fps
1920x1080@25fps

1280x720@60fps
1280x720@50fps

1280x720@30fps
1280x720@25fps

Automatic or manual focus, brightness and white balance
Far-end camera control
Daisy-chain support (Visca protocol camera)
Dual HDMI and HD-SDI output
Upside-down mounting with automatic flipping of picture
