LifeSize Room 200


The LifeSize Room 200 has been announced End Of Life by the manufacturer. Please see the LifeSize Room 220. Please contact VideoCentric to discuss how this may affect your system, maintenance and support. Once equipment is announced EOL, there maybe special offers and demo equipment available for purchase. Please contact VideoCentric for further information.

FEATURES

  • High definition video communications (1920 x 1080 resolution, 30 frames per second)
  • Support for video bandwidth from 128Kbps up to6 Mbps
  • Single or dual monitor display
  • Single or dual high definition quality PTZ camera
  • Integrated super wide-band speakerphone to hear everyone in the room
  • Standards-based support for H.264, H.263, H.261 and H.239
  • Embedded 6-way multipoint with continuous presence
  • Simple user interface
  • Dual-stream support for sharing PC content and multimedia content
  • Complete management with LifeSize® Control™ software including Microsoft® Outlook® scheduling
  • IP to ISDN connectivity with LifeSize® Networker™ enhanced gateway

*IP and video configurations: 100 Hz up to 16 kHz; PSTN narrowband configurations 200 Hz to 3.4 kHz

Techsheets

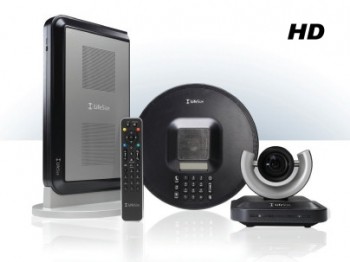

System Components - LifeSize Room 200
LifeSize codec with stand
High definition PTZ camera 200
LifeSize Phone – fully integrated speakerphone
Wireless remote control
Cables

Communications
128Kbps – 6.0Mbps (point - point)
128Kbps - 2.0Mbs (multipoint, per call)
H.323, SIP
Integration to LifeSize® Networker™ enhanced gateway for IP to ISDN H.320 connectivity
1 x RJ-45 Network LAN
1 x RJ-45 for LifeSize Networker (PoE Support)
1 x RJ-11 for PSTN
1 x 3.5mm Mic In for LifeSize MicPod

Support for Multiple Displays
Support for Single or Dual Monitor displays
Any display supporting HDMI or DVI-I input up to
1080p30, 1080i60 and 720p60

High Definition 1080p30/720p60 PTZ Camera
LifeSize-designed HD 1080p30/720p60 pan/tilt/zoom
camera (patent pending)
Maximum Resolution: 1920x1080, 30fps
Maximum Frame Rate: 60fps at 1280x720p
Support for multiple HD cameras including standard
LifeSize Camera via firewire
Support for two active camera sources at 720p30
Wide-angle zoom lens with 70 degree field of view
4x Optical Zoom / 4x Digital Zoom
Auto focus
Automatic gain control
10 camera presets (near or far end)
Standard 3.0M HDMI cable
Support for Sony EVI-HD1 HD camera (optional)

Video Specifications / Video Resolution
Maximum resolutions widescreen 16:9 aspect ratio
All resolutions progressive scanning
All resolutions at 30 frames per second except 60 frames
per second where noted
128Kbps (400x244pixels) Widescreen FCIF
384Kbps (768x432pixels) Cable TV
512Kbps (848x480pixels) DVD Resolution
768Kbps (1280x720pixels) High Definition
1.1 Mbps (1280x720pixels @ p60) High Definition
1.7 Mbps or higher (1920x1080pixels) High Definition
Actual resolution depends on capability of remote end and is impacted by the quality of the communication channel

Video Standards
H.261, H.263, H.263+, H.264, and H.239 compliant
Support for multiple dual live streaming modes:
1080p30 and 720p5
720p60 and 720p5
720p30 and 720p30

Video Formats
16:9 High Definition aspect ratio

Video Inputs (6 Inputs)
1 x High Definition Camera (720p30)
1 x HD Video In (1080p30/720p60)
1 x DVI-I In (VGA Enabled)
1 x Component In or 1 x Composite In
1 x S-Video In (VGA Enabled)

Video Outputs (2 Outputs)
1 x HD Video Out (1080p30/720p60)
1 x DVI-I Video Out (1080p30/720p60)

Fully Integrated, High Definition Audio Conference Phone
LifeSize-designed full featured conference phone doubles as the microphone for video system
16 microphones in a patent-pending Circular Microphone Array with beam forming for high directivity
100 Hz up to 16 kHz
H.323, SIP support
Stand alone phone option using VoIP
No subwoofer required, no additional microphone pods required
2X the room coverage
Powered by video system
Audio Features
High Definition Audio
GIPS NetEQ packet loss concealment
Full duplex for natural conversations
Echo cancellation for echo-free calls
Automatic gain control
Automatic noise reduction
Audio over PSTN
MicPod or Dual MicPod Support

Audio Standards
G.711, G.722, G.728, G.729, G.722.1C (Polycom® Siren14™) MPEG-4 AAC

Audio Inputs (4 Inputs)
1 x RJ-45 (PoE Support - LifeSize Phone)
2 x Stereo Line In (3.5mm)
1 x Mic In - Two Channel (3.5mm)

Audio Outputs (2 Outputs)
1 x RJ-45 (LifeSize Phone)
1 x Stereo Line Output (3.5mm)

User Interface & Features
Context sensitive user interface
Graphical User Interface Call Manager
14 Localized languages supported
Customizable background screens
Do Not Disturb mode

Security
Flash-based Web management tool
Admin password
SNMP security alerts
Ability to disable IP services and Telnet
H.235 encryption support including strict compliance
Kensington Lock™

Intelligent Networking Features
NAT/Firewall Traversal (H.460/SIP)
IP v4 and IPv6 support
Auto H.323 dialing
When used with LifeSize Networker:
H.320 dialing
Auto SPID detect/downspeeding

Directory and Address Book
Up to 1000 local directory entries
Save, Lock, Remove, Redial List features
Missed call notification
Auto-Discovery directory lookup (patent pending)
LDAP support / H.350 compliant
Meetings Directory support
Hierarchical address book

Embedded HD Multipoint Control Unit
6-way HD CP multipoint conference with up to 4 visible participants
Support for Dominant Speaker icon
6-way HD VAS multipoint conference
Transcoding support
Virtual Multiway allows participant viewing control (patent pending)
H.239 multipoint support shared from any participant
Disable multipoint option

System Management
Out of box setup via web interface and web management tool
SNMP
1 x DB-9 RS-232 port configurable for control
1 x USB (Future Use)
Backup & Restore Capability
JPEG Snapshots through web interface

Power
AC Voltage 100-240V, 50-60 Hz, 2.5A

Environmental Data
Operating temperature: 0°C (32°F) to 40 °C (104°F)
Operating humidity: 15% to 85%, non-condensing
Storage temperature: -20°C (-4°F) to 60°C (140°F)
Storage humidity: 10% to 90% non-condensing

Regulatory Model Number
Model: LifeSize Room 200 = LFZ-015
