LifeSize Unity 500


The Lifesize Unity 2000 is now End Of Life. VideoCentric have a number of all-in-one Lifesize based solutions for your meeting rooms & collaboration spaces – the LS Series. Please contact VideoCentric today to find out more.

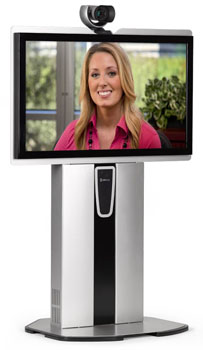

The LifeSize Unity 500 is a High Definition all-in-one Telepresence solution designed for simplicity and is perfect for the Executive Office or small meeting room. Integrating a 1080p 40″ high contrast LED HD display, a LifeSize Express 220 video system and LifeSize Phone with touch screen, this system accelerates global, consistent deployment of the highest quality High Definition video collaboration solutions.

  • 40″ LED HD Display
  • Powered by LifeSize Express 220
  • Assembly less than 10 minutes
  • Full Immersive HD Quality
  • No tools required
  • One integrated power supply

DESCRIPTION

The LifeSize Unity 500, part of the LifeSize Unity Series, is fully integrated video conferencing solution designed for executive offices and small meeting rooms. Its slick and simple, all-in-one design ensures quick setup and ease of use, and enables consistent deployment of the highest quality High Definition video collaboration solutions.

Optimised for Video, Audio and Presentation

LifeSize Unity 500 is built with best-in-class High Definition video, audio and presentation components in an all-in-one video collaboration solution.

Rapid Deployment & Easy to Use

The LifeSize Unity 500 all-in-one system in really simple to setup and requires no tools – thumbscrews hold the system in place and a magnetic front just snaps into place! This means the installer can configure the mount, activate the codec and place a video call in less than 10 minutes – and with a quick reference card and colour coded cables, anyone can do it!

Investment Protection

LifeSize Unity 500 is a fully integrated HD video, audio and presentation solution with minimal IT or facilities installation and maintenance required. It provides high investment protection because the solution can be easily redeployed to fit any new location. Businesses strive to increase collaboration and maximize productivity through real-time communication. LifeSize
Unity 500 provides an integrated and optimized HD video collaboration solution created with state-of-the-art components that accelerates global deployment.

lifesize-unity-500-side-back

FEATURES

No Tools Required

Complete set up in fewer than 10 minutes. Thumbscrews and magnetic panels means no tools needed!

HD Video Quality

Full HD quality 1920×1080 30fps; 1280×720 30fps, 16:9 format

HD Display

1080p 40″ HD high contrast, edge-lit LED

HD Camera

1080p30 HD and 10x zoom capability

HD Audio

Active, high quality loudspeaker optimized for natural and transparent voice reproduction

Phone

Touch screen powering both HD video and audio

Data Sharing

Optimized for local and far end presentation

Ideal Environment

Ideal for the executive office and small meeting rooms

Techsheets

System Components
All-in-one optimized solution:
• Codec
• Camera
• Phone
• HD Display
• Core Processor
• Active Loudspeaker
• Stand with Base
• Cables

High Definition Display
Professional, high-contrast, edge-lit LED with a
wider color spectrum, providing more accurate
color rendering, high-contrast images and, with
the broadcast quality HD video scaler, the sharpest
images and graphics.
• Diagonal Screen Size: 1 x 40”
• Display Type: Edge-lit LED
• Maximum Resolution: 1920x1080p
• Contrast Ratio: 4000:1
• Display Refresh Rate: 60 Hz
• Interfaces:
• Power 24V DC
• Control
• VGA In
• HDMI In
• DVI-D In

Speaker
Compact, high quality, bi-amplified loudspeaker
with dynamic frequency response optimization and
limiting, providing ultra smooth audio reproduction.
• Minimum Diffraction Enclosure (MDE)
• Directivity Control Waveguide (DCW)
Core Processor
All electronic functionality is managed through the core
processor. This provides power for all elements in both
120V and 240V regions. Control management automates
active input, sleep mode and power on/off, allowing
users to simply walk in, plug in, press the remote and
start their meeting.
• Sync Pulse Detection
• Integrated Control
• Interfaces:
• Power—speaker 110V or 220V
• Control—display one
• VGA Out—display one
• Power 24V DC—display one
• Power 19V DC—camera
• VGA In—codec
• Power 19V DC—codec
• USB—codec
• Ethernet—codec
• VGA In—laptop

Configurations
LifeSize Unity 500 is configured with the following
LifeSize products:
• LifeSize Express 220—10x—Phone

Dimensions
Height: 153 cm (60”)
Width: 100 cm (39”)
Depth: 67 cm (26”)
Packed Weight: 50 kg (110 lbs)

Environmental Data
Operating Temperature: 0oC (32oF) to 40oC (104oF)
Operating Humidity: 15% to 85%, noncondensing
Storage Temperature: -20oC (-4oF) to 60oC (140oF)
Storage Humidity: 10% to 90%, noncondensing
