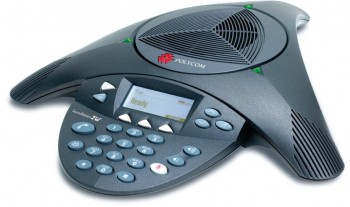

Polycom SoundStation 2 Avaya

SOUDSTATION-2W

DESCRIPTION

 The Polycom SoundStation2 Avaya connects directly into an Avaya Definity ECS digital wall jack and includes such useful features as the convenience of being able to connect a mobile phone, plus an LCD display for productivity enhancing applications. It provides direct access to the Definity’s conferencing feature, allowing quick and easy connections of up to six locations in a single conference call without using a conference bridging service.

FEATURES

  • Direct Connection to Avaya system
  • Inbuilt mics – 3
  • Increased microphone pick up
  • Integrated keypad
  • LCD display
  • Mute button
  • Standard analogue telephone jack
  • No need for a separate 3rd party PBX
  • Definity PBX port adaptor
  • Mobile phone connectivity
  • Digital speakers
  • Easy to install and use
  • Echo cancellation
  • Excellent sound quality
  • Flash key
  • Full 360-degree coverage
  • Full duplex operation (2-way)

Techsheets

Architecture
Tabletop console contains audio processing functions and keypad. Wall module contains power and PBX line interfaces.
Cables consist of 21 ft (6.4 m) single-cord connection to tabletop console and 6 ft (1.8 m) connection to RJ-11 telephone jack. Optional Extended microphone modules connect to console via 7 ft. (2.1 m) cables

Console
Size (L x W x H)
14.5 x 12.25 x 2.5 in
(36.8 x 31.1 x 6.4 cm)

Weight
1.75 lb. (0.8 kg)

Power
110V 60Hz AC / 220V 50 Hz AC (depending on country-specific SKU)

Network interface
Avaya DEFINITY ECS

PBX Compatibility
Compatible with any DEFINITY voice port that supports
the 6400, 7400 or 8400 series phones (except the Call master series)

Keypad
Standard telephone keypad, on/off key, conference key,
mute key, volume adjustment keys, menu navigation keys
and three context-dependent soft keys

Display
132x65 pixel backlit graphical LCD

User interface
User selectable ring tones
Configurable soft keys for easy dialling of voice conferencing services
Multi-lingual support: English, German, French, Italian, Spanish, Portuguese, Norwegian
Password protected configuration settings for administrators

Phone book
Phone book/speed dial list – up to 25 entries

Keypad
12-key telephone keypad
On-hook/off-hook, conference, mute, volume up/down keys, menu, navigation keys
3 context sensitive soft keys including redial, hold, programmable conference key
Console loudspeaker
Frequency response: 300 to 3300 Hz
Volume: adjustable to 94 dBA SPL (peak) volume at 0.5 meters

Console microphones
3 cardioid microphones 300 to 3500 Hz

Audio
Polycom Acoustic Clarity full duplex –
IEEE 1329 Type 1
Up to 10 ft. microphone pickup range
Gated microphones with intelligent microphone mixing
Dynamic Noise Reduction

Interfaces
2 EX microphone connectors
Applications Port* for connection to other communication
devices such as mobile phones† and computers
RCA Auxiliary audio jack

Accessories
2 cardioid extension microphones 300 - 3500 Hz

Regulatory Compliance
NA Cl/C-UL
FCC Part 68
FCC Part 15 Class A
Canadian ICES-003
CE Mark (R & TTE Directive)

Environmental Requirements
Operating temperature: 40° - 104°F (5° - 40°C)
Relative humidity: 20% - 85% (non-condensing)
Storage temperature: -22° - 131°F (-30° - 55°C)

Recommended Room Conditions
Reverberation time: <0.5 seconds
Noise level: <48 dBa

SoundStation2 ships with
Tabletop phone console
21 ft. (6.4 m) cord to console
6 ft. (1.8 m) telco cable to wall jack
User documentation (user guide CD, quick installation
guide, registration card)

Warranty
12 months

SoundStation2 uses a cable that connects to a standard 2.5mm headset connector.
If your mobile phone model does not support this type of connection you will need an adapter (not included).
Connecting the SoundStation2 to a mobile phone is analogous to connecting a headset to a mobile phone.
Not all mobile phone models recognize the SoundStation2 as a headset.
For a list of mobile phones that are known to work with SoundStation2, please consult www.polycom.com
