RADVISION SCOPIA XT Executive 240

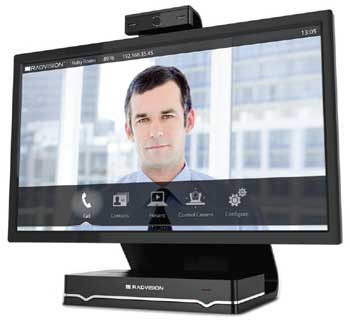

The new RADVISION SCOPIA XT Executive 240, part of the Scopia XT endpoint line, in an advanced all-in-one endpoint, completely based on RADVISION’s Scopia XT technology. The XT Executive 240 supports 1080p video, an embedded HD 4 way MCU, external 10 x zoom camera and external 3 way microphone pod.

  • 24″ full HD LED display
  • Built in HD camera
  • Built in High Fidelity Speakers
  • Built in echo cancelling mic
  • Options include 1080p video, 4 way HD MCU

DESCRIPTION

The RADVISION XT Executive 240 – Exceptional Multipoint Conferencing. Outstanding Experience.

The Scopia XT Executive 240 integrates the advanced Scopia XT video conferencing platform with a high resolution 24-inch LED display. The system offers optional embedded multi-party conferencing for impromptu group meetings, unique HD 1080p for highly detailed content sharing and available simultaneous 1080p video for an outstanding experience. H.264 High Profile and H.264 Scalable Video Coding (SVC) deliver bandwidth efficient, high performance video collaboration over real world networks.

The Scopia XT Executive 240 intuitive user interface can be operated using an included remote control or using the mouse and keyboard of a connected PC or Mac.

Options for the Scopia XT Executive 240 include support for 1080p video, embedded 4 way HD multipoint, an external 10 x zoom camera and an external 3 way microphone pod.

Standard features of the RADVISION Scopia XT Executive 240 include:

  • Unique control software from PC/Mac GUI
  • Live video up to 720p30
  • Data Sharing up to 1080p60
  • Ultra wideband audio
  • H.239 send and receive
  • H.264 High Profile
  • SVC
  • 6 Mbps call supporT

Exceptional HD Experience

HD 1080p for highly detailed content sharing and available simultaneous 1080p video deliver an outstanding experience. H.264 High Profile provides ultimate bandwidth efficiency and H.264 Scalable Video Coding (SVC) offers high performance over congested networks. The XT Executive delivers an exceptional experience for  real-world user applications and network conditions.

Intuitive and Easy-to-Use

Making video calls is easy, instant and intuitive with no training required. The XT Executive is fully integrated with PCs and Macs thanks to a simple to use application that provides complete control from a computer. A user friendly wireless remote is also included for traditionalists, and for a Multi- Touch experience, the XT Executive can be enabled for management by the Apple iPad.

Embedded Multi-Party Conferencing

The Scopia XT Executive offers optional embedded multi-party conferencing with support for up to 4 remote participants. This dedicated multipoint collaboration capability is always at the ready for impromptu group meetings in today’s fast-paced business environment.

All-in-one Conferencing Solution

The Scopia XT Executive 240 is also offered as a unique all-in-one video conferencing solution combining the XT Executive’s video capabilities with embedded 4-way multi-party conferencing, Scopia Desktop and Mobile conferencing for remote participants and BYOD initiatives, along with firewall traversal into an easily deployed all-in-one video conferencing and collaboration solution.

Techsheets

Display
Screen size: 23.6” widescreen
LED technology
Native resolution: 1920 x 1080 (16:9, 1080p)
Viewing angle: 170/160° (typical)
Brightness: 250cd/m2 (typical)
Contrast ratio: 1000:1 (typical)
Response time: 2ms
Swivel stand

Communications
IP: H.323, SIP (RFC 3261)
ISDN1 Supported through Scopia Gateway
Bit rate: H.323, SIP: up to 6/121 Mbps
H.320: up to 2 Mbps
MCU compatibility: H.243, H.231

Video
2 simultaneous channels: 720p camera
+ 1080p content
H.263, H.263+, H.263++, H.264, H.264 High Profile, H.264 SVC (both using Baseline and High Profile)
Dual video: H.239 (H.323); BFCP (SIP)
HDMI input format for auxiliary camera
1920 x 1080 @ 25, 30, 50, 60fps1
1280 x 720 @ 25, 30, 501, 60fps1
720 x 576 @ 50fps
720 x 480 @ 60fps
640 x 480 @ 60fps
Live video encoding formats
1920 x 1080 @ 25, 30, 50, 60fps: HD1080p25, 30, 50, 601
1280 x 720 @ 25, 30, 50, 60fps: HD720p25, 30, 50, 60
1024 x 576 @ 25, 30fps: w576p
768 x 448 @ 25, 30fps: w448p
704 x 576 @ 25, 30fps: 4CIF
704 x 480 @ 25, 30fps: 4SIF
576 x 336 @ 25, 30fps
512 x 288 @ 25, 30fps: wCIF
400 x 224 @ 25, 30fps
352 x 288 @ 25, 30fps: CIF
352 x 240 @ 25, 30fps: SIF
DVI input formats
1920 x 1080 @ 25, 30, 50, 60fps
1440 x 900 @ 60fps: WSXGA
1280 x 1024 @ 60fps: SXGA
1280 x 720 @ 25, 30, 50, 60fps
1280 x 768 @ 60fps: WXGA
1024 x 768 @ 60fps: XGA
800 x 600 @ 60fps: SVGA
640 x 480 @ 60fps: VGA
PC content encoding formats:
Same as DVI input formats @ 60fps

Camera
Resolution:
720p30 (optional 1080p30)
Field of View (H):
78°

Audio
Acoustic echo cancellation
Adaptive post filtering
Audio error concealment
Automatic Gain Control (AGC)
Automatic noise suppression
Frequency response:
G.711:
300 – 3,400 Hz
G.728:
50 – 3,400 Hz1
G.729A:
50 – 3,400 Hz1
G.722:
50 – 7,000 Hz
G.722.1:
50 – 7,000 Hz
G.722.1 Annex C:
50 – 14,000 Hz
AAC-LD:
50 – 14,000 Hz
G.719:
50 – 20,000 Hz

Integrated Microphone
180° range

Audio/Video Interfaces
Video inputs:
1 x HDMI
1 x DVI-I
Audio inputs:
1 x HDMI
1 x RJ-11 for optional Microphone Array Pod
1 x 3.5 mm (1/8”) line in jack for audio source (analog / digital with mini-TOSLINK adapter)
Audio outputs:
1 x 3.5 mm (1/8”) line out jack (analog / digital with mini-TOSLINK adapter)
Network Features
IPv4 and IPv6 simultaneous support
Auto Gatekeeper discovery
QoS support: IP Precedence, IP Type of Service (ToS), Differentiated Services (diffserv)
IP adaptive packet management including:
Flow control
Packet Loss based down-speeding
Packet Loss recovery policies
DTMF tones: H.245, RFC2833
SNTP date and time synchronization

Network Protocols
TCP/IP, TELNET, HTTP, HTTPS, DNS, DHCP, RTP/RTCP, STUN, SNTP, TFTP

Network Interfaces
2 x 10/100/1000 Base-T full-duplex (RJ-45), (2nd GLAN is optional)

Firewall Traversal
Auto NAT discovery HTTP and STUN
H.460.18, H.460.19
“Keep Alive” packet time configurable

Auxiliary Camera Interface
VISCA RS232 for PTZ control (Mini-DIN 8-pin)

User Interface
Direct control from keyboard and mouse through PC/Mac application
Control from iPad1
21 language on-screen user interface
Infrared remote control
API for endpoint control

Far End Camera Control
H.224, H.281

Directory Service & Address Book
LDAP Client (H.350)
Receive global address book from LDAP
Server including Scopia Management

Embedded HD Multipoint Control Unit
H.323, SIP and H.320 mixed mode
4 HD continuous presence participants
Support for Scopia Desktop and Mobile1
Dial-in / Dial-out capabilities
Encryption
Automatic continuous presence layouts
Dual-video from any site (H.323, H.320)

Security Features
Embedded encryption2
Key generation and exchange with Public-Key Cryptography (Diffie-Hellman), (H.323, SIP)
H.235 AES 128 Confidentiality for RTP media
H.235 MD5 Authentication
H.235 Authentication and Integrity (H.235v3/Annex D)
Digest Authentication
Microsoft NTLM Authentication and Session Security (SSP)
HTTPS, SSH
Selective enable / disable of IP features

Web Management
Configuration, call, diagnostics and management functions are accessible with:
Internet Explorer 7.0+, Firefox 3.0+, Safari 3.0+, Chrome 16.0+

Options
4 Port Embedded 720p60 MCU (upgradable
to 1080p30 with 1080p upgrade license)
Support for Scopia Desktop and Mobile
Scopia Control application for Apple iPad
Auxiliary Premium 720p60 Camera
(upgradable to 1080p60 with
1080p upgrade license)
1080p upgrade (30fps with embedded
camera, 60fps with optional HDMI camera)
Digital Microphone Array Pod
12 Mbps Extended IP Bit Rate
Advanced Audio Codec Pack
(G.728 and G.729A)
2nd GLAN enable

Power Supply
100 - 240VAC, 50 - 60Hz, 1A

Physical Characteristics
Height: 49.5 cm (19.5”)
Width: 54.5 cm (21.5’’)
Depth: 25 cm (9.9’’)
Weight: 10 kg (22.1 lb)
