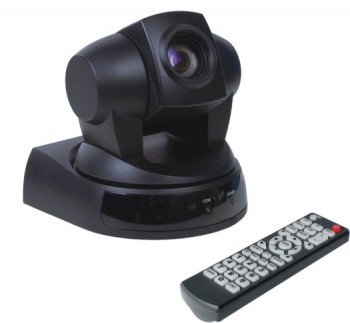

VideoCentric’s Lumino360 Camera
VideoCentric’s new Lumino360 SD Pan/Tilt/Zoom camera is a high quality Standard Definition camera, ideal for remote shooting applications such as distance learning and video conferencing. The Lumino 360 camera is equipped with 18 x optical zoom and easy-to-use features such as 360 degree continuous pan and precise positioning.
- High quality colour video camera with 18X optical zoom
- Clear view of distance objects, up to 550TVL
- IR remote control of P/T/Z and other camera functions
- Diagonal tilt function
- Compact design with excellent mechanical design: low motion noise, precise positioning
- Pan: 360o continuous, 0.5 o ~70 o /sec ;Tilt: -30~90 o, 0.5 o ~50 o /sec
- Back Light Compensation
- RS232, RS485/422 interfaces
- Pelco D/P, VISCA protocol
Mounting Type
Ceiling or Desktop
Camera Specifications
Signal Format
PAL/NTSC
Image Sensor
1/4 SONY CCD
Modules
Sony FCB-EX48C(P)
Sony new E series FCB-EX48E(P)
Horizontal Resolution
480TVL 550TVL
Effective Pixels
PAL: 440,000 pixel / NTSC: 380,000 pixel
Zoom
Optical 18X/Digital 12X
Lens
f=4.1--73.8mm, F=1.4--F3.0
Illumination
0.1Lux 0.02Lux
Shutter Speed
1s--1/10,000s (22 steps) 1/4 to 1/10000 sec. (20 steps)
Angle of View
48 (Wide end) ~ 2.8 (Tele end)
Synchronization Internal Synchronization
S/N Ratio
More than 50dB
BLC
On/Off
White Balance
Auto/Manual
Video Output
1.0±0.2Vp-p, 75 Ohm, composited
Mechanical Specifications
Preset Number
64
Auto Cruise
Yes
Ceiling or Desktop
Camera Specifications
Signal Format
PAL/NTSC
Image Sensor
1/4 SONY CCD
Modules
Sony FCB-EX48C(P)
Sony new E series FCB-EX48E(P)
Horizontal Resolution
480TVL 550TVL
Effective Pixels
PAL: 440,000 pixel / NTSC: 380,000 pixel
Zoom
Optical 18X/Digital 12X
Lens
f=4.1--73.8mm, F=1.4--F3.0
Illumination
0.1Lux 0.02Lux
Shutter Speed
1s--1/10,000s (22 steps) 1/4 to 1/10000 sec. (20 steps)
Angle of View
48 (Wide end) ~ 2.8 (Tele end)
Synchronization Internal Synchronization
S/N Ratio
More than 50dB
BLC
On/Off
White Balance
Auto/Manual
Video Output
1.0±0.2Vp-p, 75 Ohm, composited
Mechanical Specifications
Preset Number
64
Auto Cruise
Yes
Panning Range
Pan:0o--360o continuous
Tilt:-30--90o
Pan / Tilt Speed
Pan:0.5o--70o/sec
Tilt:0.5o--50o/s
Address 0 - 255
Operational
Video Output Interface
RCA
Control Interface
RS485/422, RS232
Baud Rate(RS485/422)
1200bps/2400bps/4800bps/9600bps/19200bps
Comm. Protocol
Pelco-D, Pelco-P
Remote Control
Yes
Work Temperature
0°C--+50°C
Storage Temperature
-20°C--+70°C
Relative Humidity
0.95% without agglomeration
Power Supply
DC12V
Power Consumption
Less than 10W
Dimension
156(L) × 137(W) × 140(H)mm
Net Weight
1kg
Body Color
Black / Sliver Gray
Accessories
Power adaptor, Remote controller, User manual
Pan:0o--360o continuous
Tilt:-30--90o
Pan / Tilt Speed
Pan:0.5o--70o/sec
Tilt:0.5o--50o/s
Address 0 - 255
Operational
Video Output Interface
RCA
Control Interface
RS485/422, RS232
Baud Rate(RS485/422)
1200bps/2400bps/4800bps/9600bps/19200bps
Comm. Protocol
Pelco-D, Pelco-P
Remote Control
Yes
Work Temperature
0°C--+50°C
Storage Temperature
-20°C--+70°C
Relative Humidity
0.95% without agglomeration
Power Supply
DC12V
Power Consumption
Less than 10W
Dimension
156(L) × 137(W) × 140(H)mm
Net Weight
1kg
Body Color
Black / Sliver Gray
Accessories
Power adaptor, Remote controller, User manual
